Plessis Rail Bridge, Winnipeg

Facts and Figures:

  • Location: Winnipeg, Canada

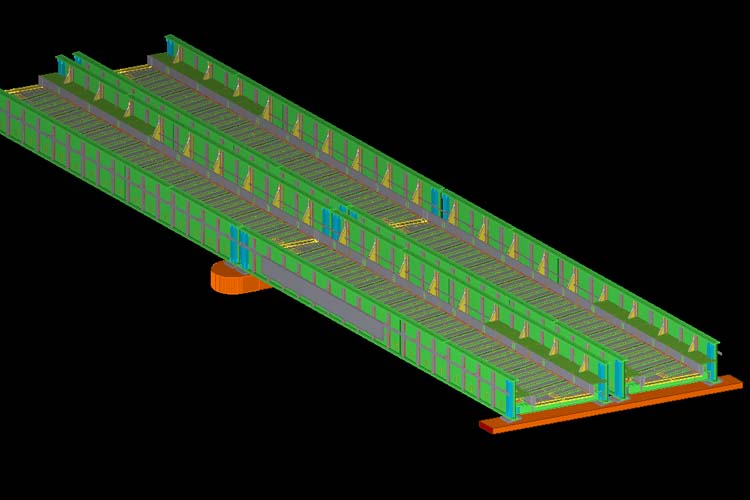

  • 60 Meter span Rail Bridge

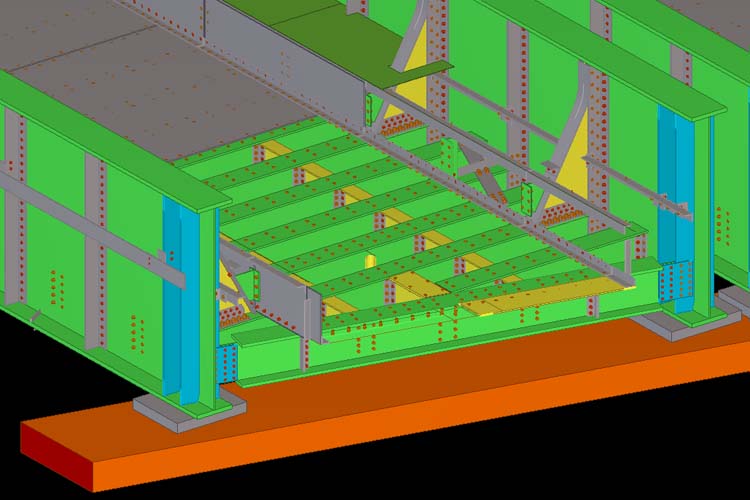

  • Plate girders, abutment & pier stiffeners are the only parts weled. All other connections, stiffeners & deck plates etc. are bolted. 22,600 bolts & 8,800 counter-sunk screws were required to assemble.
+
+
+
+
