Industrial Rebar Project

Project Description

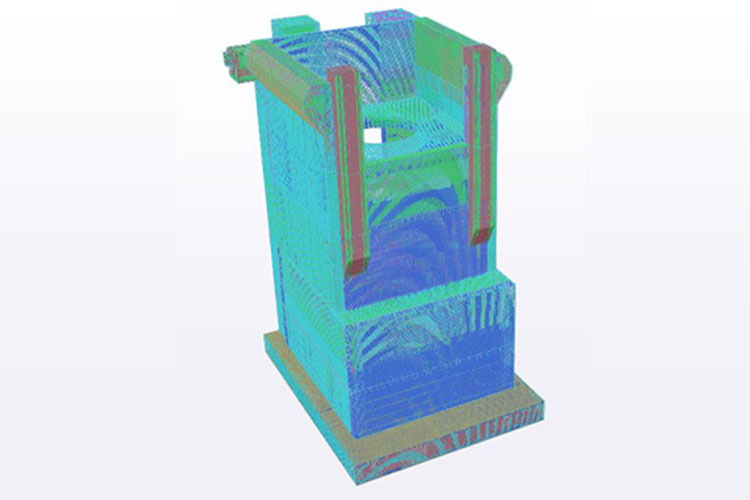

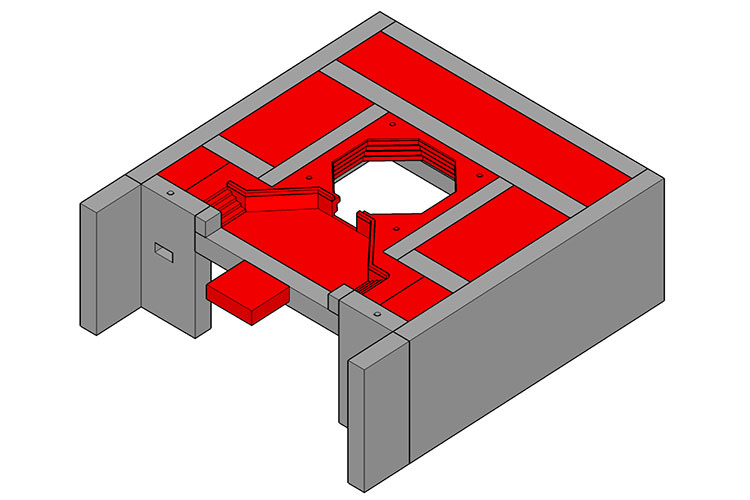

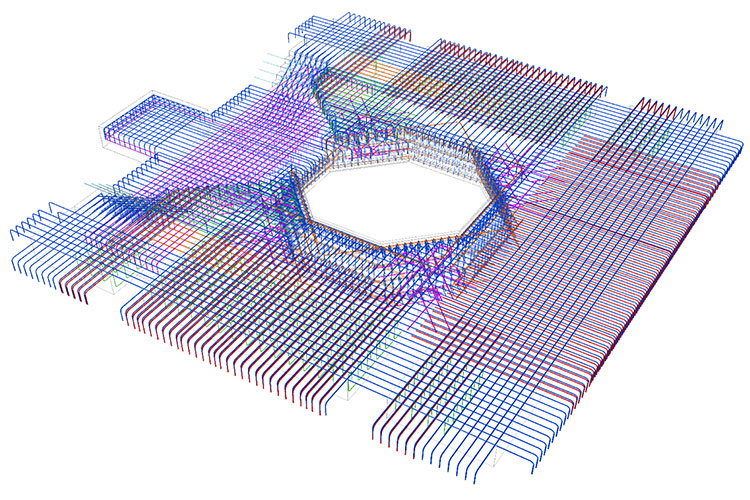

This structure is part of a mining building used in the primary grinding process of raw material and needs to support crushers that produce intense centrifugal forces. Therefore the number of inserts that were required to support these forces was significant. The representation of structures was done through "cards" which were intended to simplify the field assembly, but this process presented a greater challenge when producing the drawings. The detailing team had to manage the construction process and apply it on the drawings. In this system, the bars are reported in a manufacturing list and called from the drawings through a "location code" that defines the position of each bar, or the set of bars associated with that assembly. Our Team.s deliverables were of the highest caliber on this project by providing BIM solutions and application of innovative construction technology to generate efficiency and reduce construction cost.

+
+
+
+
